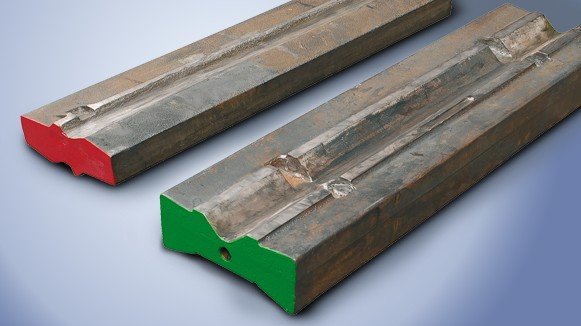

High-quality blow bar manufactured for leading impact crushers including Hazemag, SBM, Rubble Master, and McCloskey. Designed for high wear resistance, precise fitment, and reliable performance in demanding crushing applications.
Visit Our Main Company Website: www.melcocastings.com
Blow bars are one of the most critical wear components used in horizontal shaft impact crushers. Their performance directly affects crushing efficiency, output quality, and maintenance cycles. At Melco Precisions Pvt Ltd, we manufacture blow bars compatible with leading crusher brands such as Hazemag, SBM, Rubble Master, and McCloskey.
These four machines are not interchangeable in how they work a bar. A stationary primary impactor in a cement plant and a compact mobile unit crushing demolition rubble put very different demands on the same component, which is why the grade that performs well in one can be the wrong choice in another. The sections below set out what each machine type typically asks of a blow bar.

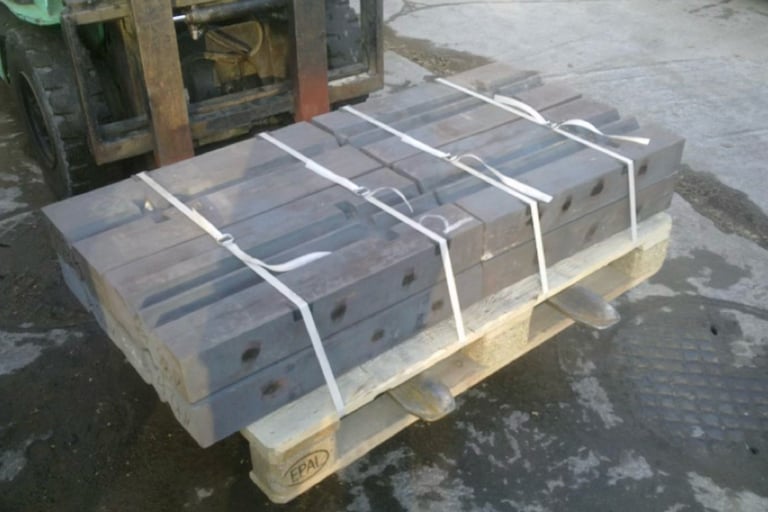

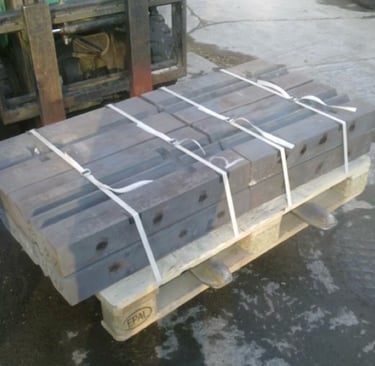

Hazemag built its reputation on heavy stationary impactors for limestone and the cement industry, and its impactor range spans several series including the APK, APS and APSE families. These are typically fed consistent, relatively clean rock at high tonnage, in installations that run long campaigns between planned shutdowns.
That duty profile usually favours abrasion resistance over extreme toughness. Where feed is consistent limestone and tramp metal is well controlled upstream, high chrome white iron generally gives the best cost per tonne. Where a Hazemag machine is working secondary duty on harder or more variable feed, a martensitic grade is often the safer specification.
Send the model designation from the machine plate together with your rotor configuration, and we will confirm dimensions from drawing or from a worn sample.

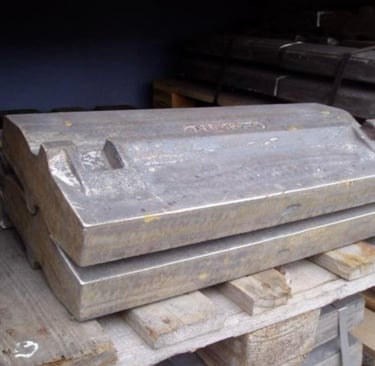

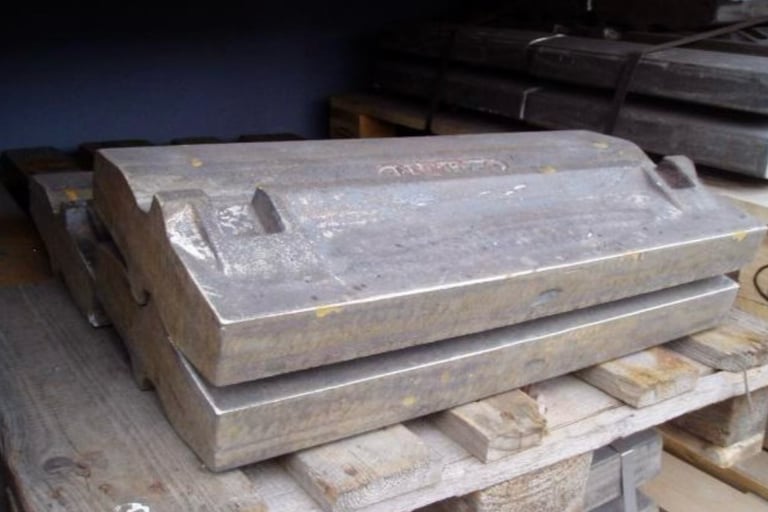

SBM Mineral Processing produces both stationary plant and mobile impact crushing units used across aggregate production and recycling. Machines in mixed service see a wider feed variation through the year than a dedicated quarry installation does.
Where a single SBM unit alternates between clean aggregate and recycled material, specifying one extreme grade tends to disappoint in one of the two duties. A martensitic grade is frequently the practical answer, accepted deliberately as a compromise rather than as an optimum for either.

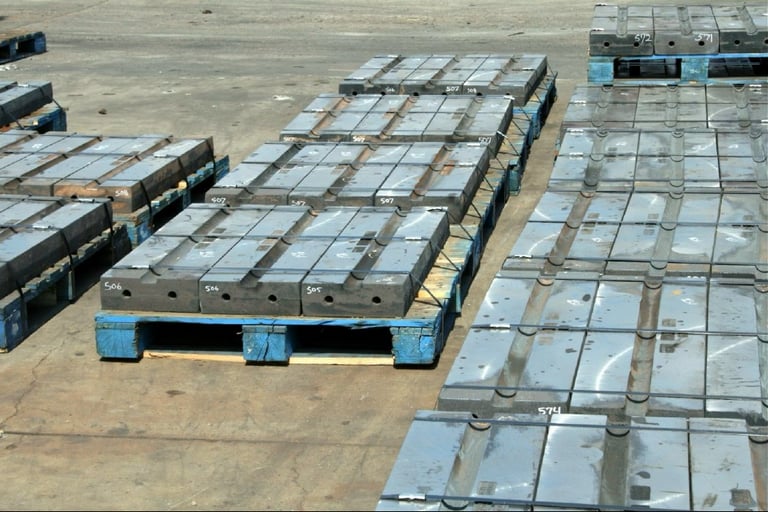

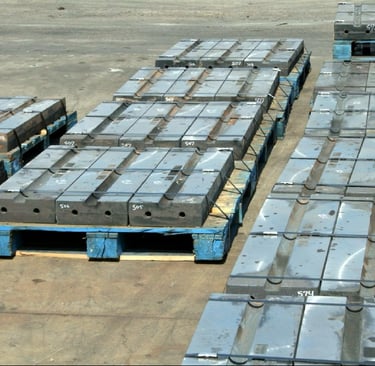

Rubble Master compact mobile impactors are widely used on demolition and construction-waste sites, working concrete, masonry and mixed rubble. This is the most tramp-heavy duty of the four: rebar, fixings and the occasional genuinely uncrushable object are part of normal operation rather than exceptions.
Toughness matters more than peak hardness here. Manganese steel work hardens at the struck surface while the core stays ductile, which is why it is usually the right starting point for demolition feed. Plants that specify high chrome on this duty in the hope of longer life commonly report cracked and broken bars instead.
If your bars are breaking rather than wearing back on a Rubble Master machine, the grade is almost certainly too hard for the work rather than defective.
McCloskey mobile impactors are used heavily by contractors moving between sites, which means the feed changes with the job. A machine may run recycled concrete one month and quarried stone the next, and the wear pattern changes with it.
For contractors, the practical question is usually not which grade lasts longest but which grade behaves predictably across the range of work actually taken on. Where jobs are genuinely mixed, a martensitic grade avoids the risk of breakage on rubble while still holding up reasonably on stone.
Blow bars are manufactured as compatible replacements for the machines listed below. Where a model is not shown, it can usually still be produced from a drawing or a worn sample.
| Crusher | Coverage | Usual Grade |
|---|---|---|
| Hazemag | APK series, APS series and 1010 | Cr20 / Cr26, or Mn18Cr2 on shock-loaded duty |
| SBM | Stationary and mobile impactor range | Cr18 / Cr20, or Mn13Cr2 on mixed feed |
| Rubble Master | Compact mobile impactor range | Mn13Cr2 / Mn18Cr2 |
| McCloskey | Mobile impactor range | Mn13Cr2, or CrNiMo on mixed duty |
Where a coverage cell names a range rather than individual models, fitment is confirmed per machine from your model designation, a drawing or a worn bar – not taken from a stock list.
Send the model designation from your machine plate, and a drawing or worn bar where you have one, and fitment is confirmed before quoting.
We manufacture blow bars in multiple material grades to suit different crushing requirements and operating conditions:
Exact chemistry and hardness are confirmed against your application with the quotation, and can be certified per batch on request.
Most enquiries stall on identification rather than on price. If you can supply any one of the following, fitment can usually be confirmed quickly:
Where a machine is old enough that its rotor pockets have worn, the original drawing may no longer describe it accurately. In that situation a worn bar is a better basis for manufacture than a catalogue number.
A correctly specified bar that does not seat properly will underperform a compromise grade that does. Dimensional accuracy at the mounting faces controls how load transfers from the bar into the rotor, and a bar able to move under impact both wears unevenly and puts stress into the rotor itself.
This is worth checking before changing grade. If bars within one set wore at visibly different rates, the cause is more likely feed distribution or seating condition than metallurgy, and no change of material will correct it.
Our blow bars are widely used in a variety of crushing applications, including:
These applications require wear parts that can deliver consistent performance under demanding conditions.
We also supply blow bars for other leading crusher brands such as Stedman, Eagle, Metso, and Astec, along with a complete range of HSI impactor blow bars for various crushing applications.
Related reading: how to read blow bar wear patterns before deciding on a different grade.
Distributors and importers reselling into their own markets can find supply information on our distributors page.
They are OEM-compatible replacement blow bars manufactured by Melco Precisions Pvt Ltd, not original manufacturer parts. They are produced to match fitment and performance on the crusher models they are made for. Brand names are used only to identify machine compatibility.
We manufacture blow bars compatible with impact crushers from Hazemag, SBM, Rubble Master and McCloskey. Send your exact model and rotor configuration and we will confirm which dimensions we hold or whether a pattern needs developing from your sample.
A worn sample or a drawing is normally enough to develop the pattern. Pattern cost, if any, is confirmed with the quotation before production starts.
Manganese steel is usually the right starting point where rebar and tramp metal are routine, because it absorbs shock instead of cracking. High chrome tends to break on this duty even though it would last longer in clean, abrasive stone.
A martensitic grade is usually the practical choice for genuinely mixed duty. It is a deliberate compromise rather than the best performer in either extreme, and it avoids the breakage risk of specifying for abrasion alone.
High chrome white iron for abrasive material, manganese steel for high impact and larger feed, and martensitic steel where both wear resistance and impact strength are needed. Material selection depends on what is being crushed and the operating environment.
Compare cost per tonne crushed rather than price per bar. Unit price ignores wear life, the production hours lost to each change-out, and the gradation drift that occurs as the striking edge wears back.
Yes. We supply crusher wear parts internationally, with shipments to the USA, Australia, UAE, UK, Germany, Spain, Russia and several African markets. Distributors and importers can see supply terms on our distributors page.
Send your machine model, a drawing or photographs of a worn part. Our team confirms fitment and recommends the grade before quoting – usually within one working day.
